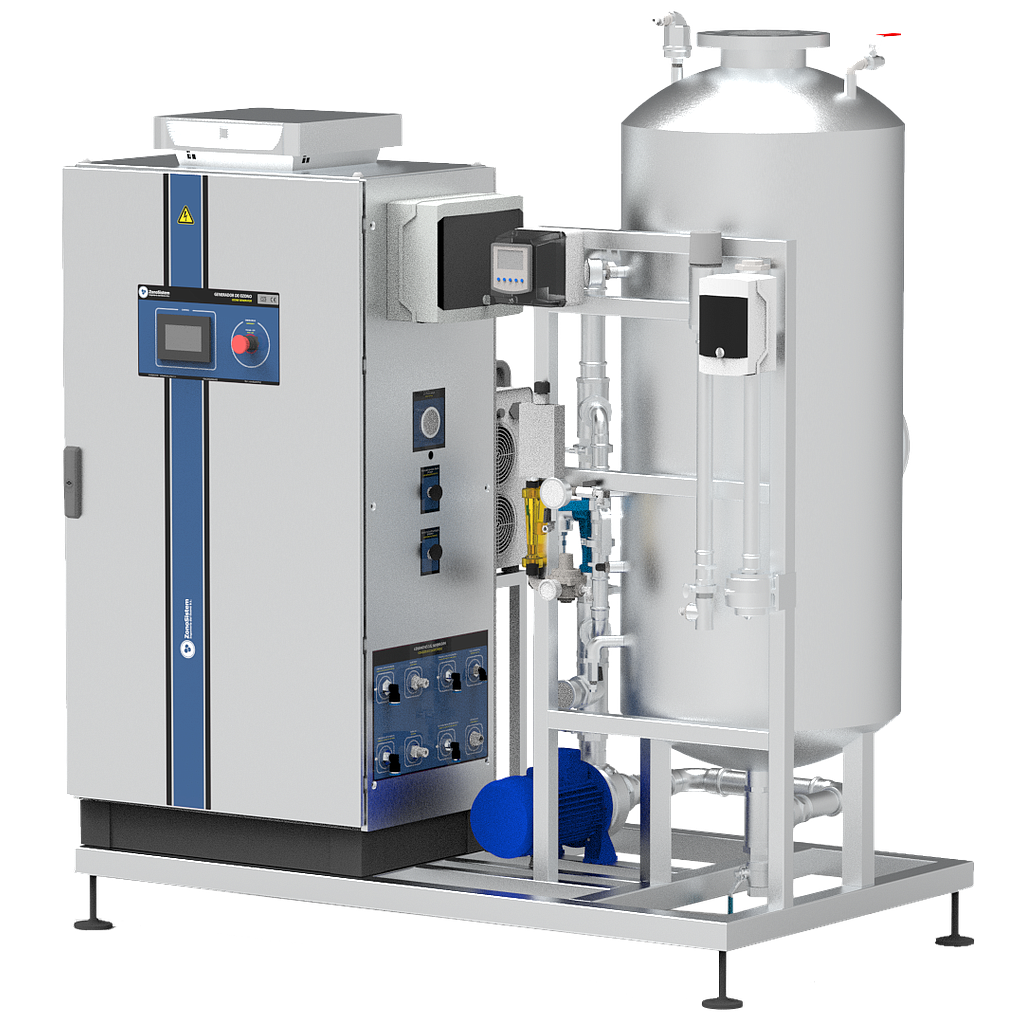

HIDRO VT GRZO120-EPSF Industrial Ozone Plant. V3
High-efficiency HIDRO VT type industrial Ozone Plant. 120gO3/h, 148g/Nm3, 400v, 3P+N, 50Hz, 5.8 KW. This system is used to ozonize a water line. It has an industrial ozone generator, a dilution system with a tank, a pump and a venturi. It has advanced control by PLC and Redox.
This ozonation plant is used to treat water in the water line. Allows to inject and maintain a desired amount of ozone in the water pipe: homogeneous, constant and automated. The plant includes everything that it is necessary to function autonomously. You only need to plug it and connect it to the water line to be treated.
The equipment includes a high-performance industrial ozone generator with an oxygen concentrator that works at a concentration of 148g/Nm3. It provides high efficiency in the dilution and oxidation of pollutants. The accelerator pump allow the injection of ozone into the water over a wide range of pressures.The system includes a PLC with advanced control through automatic power self-adjustment. This allows you to keep the desired amount of ozone constant.
Manufacturing in 30-40 days
HIDRO VT GRZO
Ozone system for treatment in the water line
Power with maximum control
Save without the need for added chemicals
Great power of oxidation, deodorization and disinfection
Environmentally friendly, no
waste
Automated system, with remote access and control
What is it used for?
This equipment is used to dose ozone in a pressurized water pipe, maintaining a constant ozone concentration. It is used to disinfect and purify water and pipes. Widely used in agricultural water treatment, for drip or sprinkler irrigation, in drinking water treatment, waste water, process water, cooling towers, swimming pools, aquariums, etc. Ozone is an excellent disinfectant, which allows you to maintain hygiene both in the water and in the pipes.
Product Details
| Room fittings | The room must be well ventilated, and provide an extraction system in case of leaks. Install a sign with safety warnings. It is recommended that the room have a drain pit. |
| Ozone generator | Latest generation GRZO120-EPSF model. |
| Ozone Dilution System | Compuesto por bomba, venturi, tanque de acero inoxidable 316L y sistema de seguridad antirretorno. |
| Oxygen concentrator | With air compressor, oxygen concentrator at 95% purity and -30ºC dew point. |
| Included in the packaging | Coolant liquid bottle + User manual |
| Included in the equipment | The equipment includes Refrigerator Dryer and Chiller |
| Communication | ON Remote wiring, status relays (Started, generating, fault). Allows Modbus communication. |
| Compressed air unit | Pre-filter + Compressor + Refrigeration dryer + Filters |
| Sensors | Ozone Amps, Compressed air pressure, Pressure, Temperature and Oxygen Flow, Ozone Leakage, Door opening. |
| Ozone Generation system | 120 gO3/h ferrule with borosilicate dielectrics. |
| Control | By 4.3" Touch PLC, PID control, alarm and maintenance manager. |
| Refrigeration | Chiller + Glycol |
| Technical Valves | Outlet ozone motorized valves, manual ozone pressure regulating valve |
| Hydraulic connection | Inlet and outlet DN150 |
| Packed size | Consult |
| Dimensions | Consult |
| Weight | Consult |
| Power supply | 400 V, 3P+N, 50 Hz |
| Electric Power | 5 kW |
| Air/Oxygen flow | 20 lpm |
| Ozone Production | 120 gO3/h |
| Fluid freatures | Ǿ Solids < 1mm; Suspended solids (SS) <150mg/l; Density = 1 g/cm3 ± 5% |
| Room temperature | 5-40ºC |
| Fluid temperature | 5-30ºC |
| Hydraulic Working Pressure | Between 0 and 6.5 Bar |
| Humidity | <85% |
| Source gas | The oxygen is generated by the team itself with its PSA unit |
| Others | Admits venturi at the outlet |
| Working pressure | 0,95 Bar |
| Made in | Spain |
| Made by | ZonoSistem |
| Warranty | 2 years extendable indefinitely, with maintenance contract. |
| UFI number | G000-W09P-Y00M-TV8V |
| Certificates | CE, BIOCIDA PT2, PT4, PT5, PT11 |
| Last revision | 2024 |
| Sold from | 2024 |
Functioning
This HIDRO VT ozone plant includes a touch screen from which you can easily and intuitively program different treatments throughout the day using a recipe planner. When the equipment receives a running order, the refrigeration circuit is activated. Then the compressor is started and takes air from the atmosphere The air is filtered, dried and introduced into the PSA where the nitrogen is removed from the and the oxygen is concentrated to a purity of 95%. This flow of oxygen is conducted to the generation core, where the corona discharge is applied and the oxygen is transformed into ozone. With the oxygen flow meter you can regulate the desired flow. Subsequently, the ozone is channeled to the venturi where the ozone is injected into the water of the customer's line. In the tank, it will be homogenized and a contact time is given for the ozone to react, disinfect and purify.
Included documentation
Safety manual.
User manual, installation and commissioning.
Maintenance manual.
Declaration of conformity.
Certificate of guarantee.
Compliance with the biocidal regulation.
Results of the Quality Test in the factory.
Technology
This GRZO ozone generator uses high frequency corona discharge technology with ceramic dielectric.
