HIDRO V GRZO120-EPSF Industrial Ozone Plant. V3

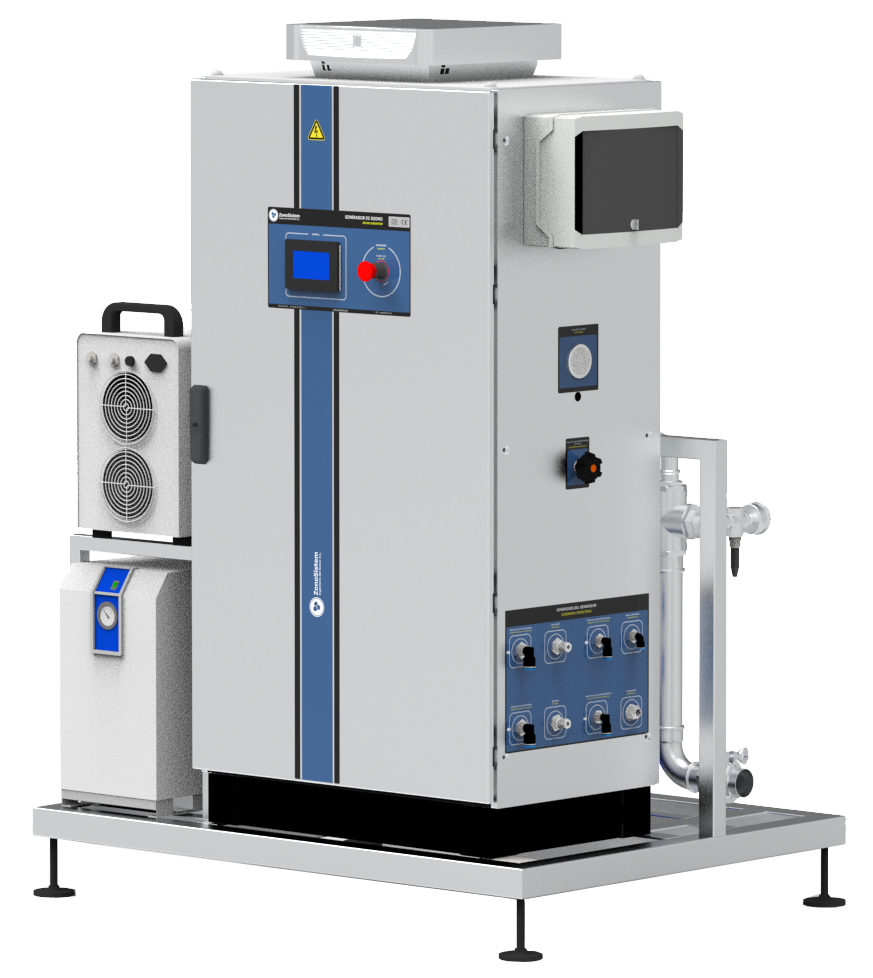

State-of-the-art, high-efficiency industrial Ozone plant HIDRO V type, from 120gO3/h, to 148g/Nm3, 400v, 3P+N, 50Hz, 5,5 KW. To ozonate a water tank. With industrial ozone generator, dilution system with recirculation pump and venturi. With advanced control by PLC and Redox.
This ozonation plant for water treatment, allows to maintain a desired amount of ozone in a water tank, in a homogeneous, constant and automated manner. The plant includes everything necessary to function autonomously. You only need a light point and connect to the water line to be treated. The equipment includes a high performance industrial ozone generator, with an oxygen concentrator, which works at 148g/Nm3 of ozone concentration, providing a high efficiency of dilution and oxidation of pollutants. The recirculation pump allows the suction venturi to inject the ozone into the water and homogenize it in the tank. The system includes a PLC with advanced control, with automatic power adjustment, which allows you to maintain the desired amount of ozone constantly.
Manufacturing in 30-40 days
HIDRO V GRZO
Ozone system for deposit treatment
Power with maximum control
What is it used for?
To dose ozone in a water tank, maintaining a constant ozone concentration. Used to disinfect and purify water, tank and pipes. Widely used in agricultural water treatment, for irrigation tank, in treatment of drinking water, wastewater, process water, cooling towers, swimming pools, aquariums, etc. Ozone is an excellent disinfectant, which allows you to maintain hygiene in the water, as well as in the tank and pipes.
Product Details
| Room fittings | The room must be well ventilated, and provide an extraction system in case of leaks. Install a sign with safety warnings. It is recommended that the room have a drain pit. |
| Included in the packaging | Coolant Liquid Bottle + User Manual |
| Oxygen concentrator | Set of two-column concentrators and compressors, 95% purity. |
| Ozone Dilution System | Composed of pump, venturi and anti-return safety system. |
| Ozone generator | Latest generation GRZO120-EPSF model |
| Included in the packaging | Coolant liquid bottle + User Manual |
| Control | By PLC with touch screen, 4.3". Alarm and maintenance manager. PID power control based on Redox or Dissolved Ozone. |
| Communication | On wired remote, Status relays (Started, Generating, Fault). Allows Modbus communication. |
| Sensors | Ozone Amps, Compressed air pressure, Oxygen Pressure and Flow, Refrigeration Temperature, Ozone Leakage, Door Opening. |
| Technical Valves | Motorized ozone output valves, Motorized and stainless steel 316L safety non-return valve in the venturi. |
| Refrigeration |
Chiller + Glycol |
| Ozone Generation system | 120 gO3/h ferrule with borosilicate dielectrics. |
| Compressed air unit | Pre-filter + Compressor + Refrigeration dryer + Filters |
| Included in the equipment | The equipment includes Refrigerator Dryer and Chiller |
| Power supply | 400 V, 3P+N, 50 Hz |
| Dimensions | Consult |
| Packed size | Consult |
| Air/Oxygen flow | 20 lpm |
| Weight | Consult |
| Electric Power | 5,5 kW |
| Ozone Production | 120 gO3/h |
| Hydraulic connection | 2" - H |
| Fluid freatures |
Ǿ Solids < 1mm; Suspended solids (SS) <150mg/l; Density = 1 g/cm3 ± 5% |
| Fluid temperature | 5-30ºC |
| Humidity | <85% |
| Hydraulic Working Pressure | Between 0 and 6.5 Bar |
| Working pressure | 0 - 0,4 Bar |
| Source gas | The oxygen is generated by the team itself with its PSA unit. |
| Room temperature | 5ºC - 40ºC |
| Made by | ZonoSistem |
| Sold from | 2015 |
| Last revision | 2021 |
| Certificates | CE, BIOCIDA PT2, PT4, PT5, PT11 |
| Made in | Spain |
| Warranty | 2 years extendable indefinitely, with maintenance contract |
| UFI number | G000-W09P-Y00M-TV8V |
Functioning
This HIDRO V GRZO ozone plant includes a touch screen from which you can easily and intuitively program different treatments throughout the day, using a recipe planner. When the equipment receives a start order, the refrigeration circuit is activated, and the compressor starts up, takes air from the atmosphere, filters it, dries it, and introduces it into the PSA, where nitrogen is removed from the air, and it is concentrated oxygen up to 95% purity. This flow of oxygen is conducted to the generation core, where the corona discharge is applied and the oxygen is transformed into ozone. With the oxygen flow meter you can regulate the desired flow. The recirculation pump takes water from the tank, and the ozone generated is injected into the venturi, returning a highly ozonated water to the tank, where it is homogenized and reacts with the pollutants. This way you can disinfect the water, the tank and the pipes.
Included documentation
security manual
User manual, installation and commissioning.
Maintenance manual.
Declaration of conformity.
Certificate of guarantee.
Compliance with the biocidal regulation.
Results of the Quality Test in the factory.
Technology
This GRZO ozone generator uses high frequency corona discharge technology with ceramic dielectric.
