GRZO200-EPSF Industrial Ozone Generator. V4


Internal Reference: FABGRZO.0025

GRZO200-EPSF Industrial Ozone Generator. V4

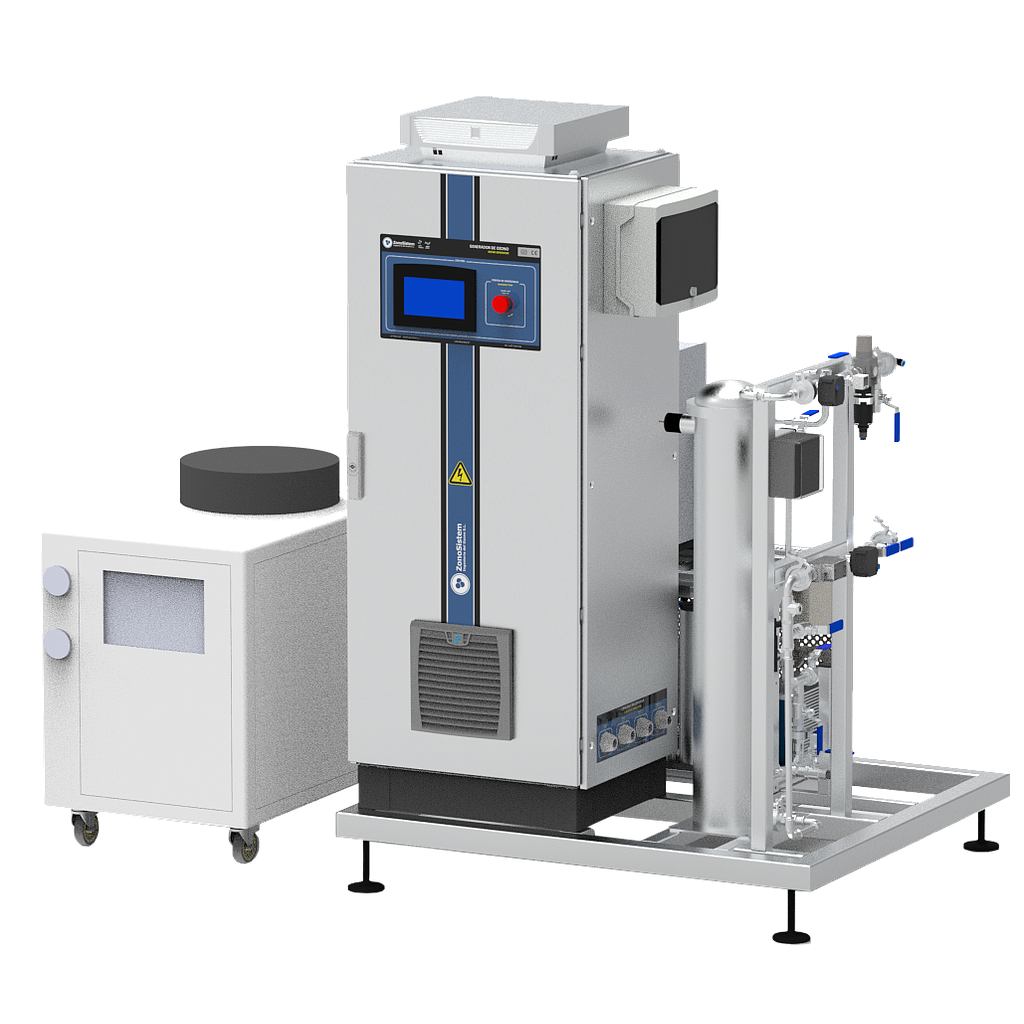

Industrial Ozone Generator, cooled by glycol, with compressor, oxygen concentrator, dryer, chiller and PLC control with touch screen. Ozone production of 200gO3/h, at a concentration of 148g/Nm3. 400V, 3P+N, 50Hz, 5,3 kW.

Compact glycol-cooled ozone generator with high ozone concentration, with air compressor and integrated Oxygen concentrator. It also includes filters and refrigerant dryer, chiller, ozone leak sensor and PLC control, with touch screen, data logging and remote access. Manufactured with high quality components, ready to connect electrically and work. Robust, durable and reliable equipment.

Highly recommended
2 years warranty (expandable if you have a maintenance contract)
Manufacturing in 30-40 days

Request a quote

Industrial Ozone Generator

Technical specifications

Product Details

This powerful ozone generating machine is mainly used in water disinfection and purification treatments, and is frequently used in wastewater treatment plants (WWTP), public water purification (DWTP), agricultural irrigation lines, fish farms, aquariums, recovery of lakes and ponds, swimming pools, etc.






Product Details

What´s included

Ozone Generation system 200 gO3/h ferrule with borosilicate dielectrics. Glycol cooled.
Oxygen concentrator Set of two-column concentrators and compressors, 95% purity.
Compressed air unit Pre-filter + Compressor + Dryer + Filter
Refrigeration Chiller + 25 litres of Glycol ready to use
Control For PLC V700, 7". Recipe manager, weekly programmer, alarm and maintenance manager.
Communication Wired Remote ON, Status Relays (Initiated, Generating, Fault), Allows ModBus communication and Remote Access with Full Control with VPN router included.
Sensors Ozone Amps, Compressed Air Pressure, Oxygen Pressure and Flow, Refrigeration Flow and Temperature, Door Opening, Ozone Leakage in a range of 0-10 ppm, and with a resolution of 0.01 ppm.
Technical Valves Motorised outlet ozone valve, Manually controlled oxygen flowmeter, Motorised oxygen valve
Included in the packaging Coolant Carafe + User's Manual

Technical features

Ozone Production 200 gO3/h
Ozone concentration Maximum = 200 g/Nm3
Optimum = 148 g/Nm3
Air/Oxygen flow 30 lpm
Power supply 400V, 3P+N, 50Hz
Electric Power 5.6 kW
Gas connection OUT Thread 1/2 " Female + with tube fitting 10mm Ext.
Dimensions 1200 x 1100 x 1850 mm (Width x Depth x Height)
Weight 330 kg

Condiciones de Trabajo

Humidity <85%
Room temperature 5 - 35ºC
Working pressure 0.7 bar
Source gas Oxygen is generated by the equipment itself with its PSA unit.
Quality of the water that is refrigerated Fill the chiller with the prepared Glycol included in the scope of delivery.
Others Admits Venturi at the outlet

Información Adicional

Made by ZonoSistem
Made in Spain
Sold from 2016
Last revision 2023
Certificates CE, BIOCIDA PT2, PT4, PT5, PT11
Warranty 2 years extendable indefinitely, with maintenance contract
UFI number G000-W09P-Y00M-TV8V

Operation

This ozone generator equipment from the GRZO range includes a touch screen from which you can easily and intuitively program different treatments throughout the day. You can do it using a recipe planner. When the equipment receives an order, the refrigeration circuit is activated and the compressor starts taking air from the atmosphere. The air is filtered, dried and introduced into the PSA where the nitrogen is removed from the air. The oxygen gets concenterated to a purity of 95%. This flow of oxygen is conducted to the generation system where the corona discharge is applied and the oxygen is transformed into ozone. With the oxygen flow meter you can regulate the desired flow rate.

Included documentation

  • Safety manual.

  • User manual, installation and commissioning.

  • Maintenance manual.

  • Declaration of Conformity.

  • Certificate of guarantee

  • Compliance with biocidal regulations.

  • Our Quality Test results.

Technology

This GRZO ozone generator uses high frequency corona discharge technology with ceramic dielectric.

We comply with biocidal regulations and ISO certificates.
