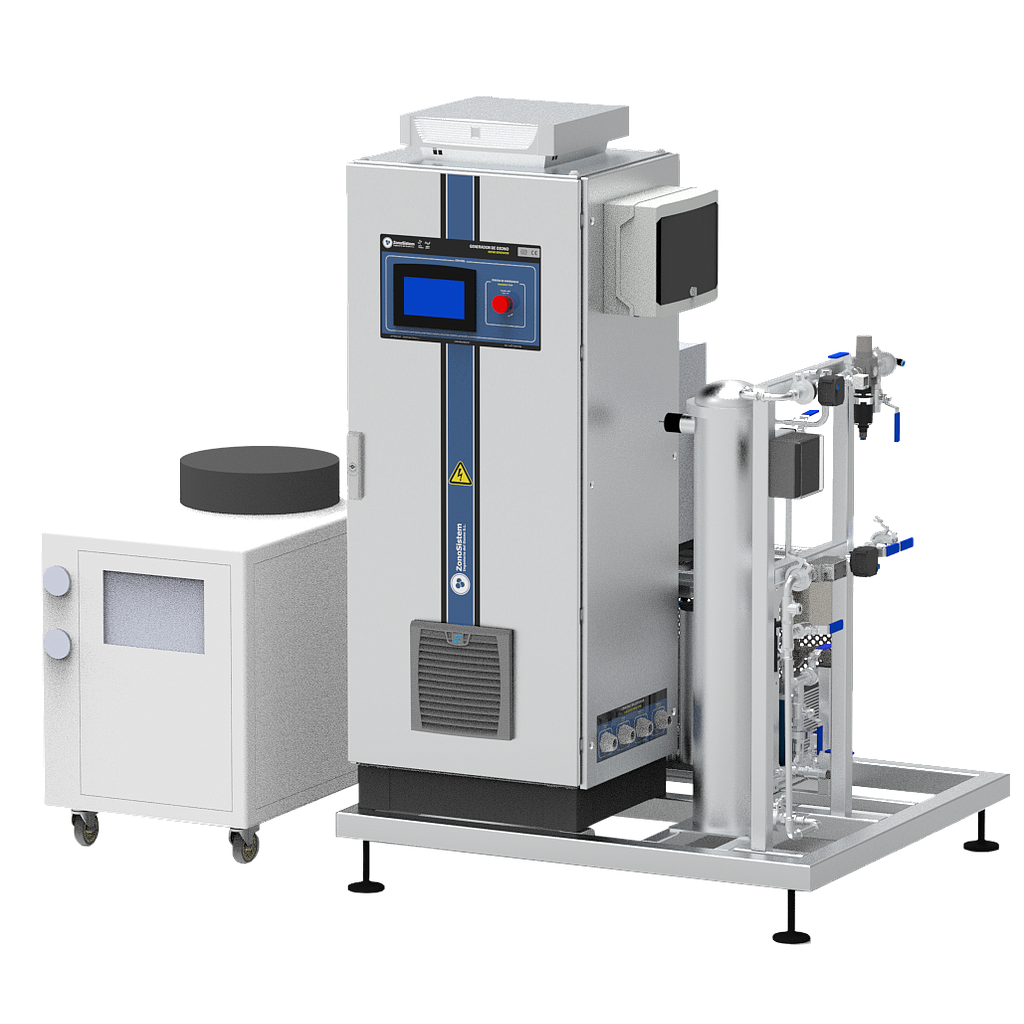

GRZO200-EPSF Industrial Ozone Generator. V4
Industrial Ozone Generator, cooled by glycol, with compressor, oxygen concentrator, dryer, chiller and PLC control with touch screen. Ozone production of 200gO3/h, at a concentration of 148g/Nm3. 400V, 3P+N, 50Hz, 5,3 kW.
Compact glycol-cooled ozone generator with high ozone concentration, with air compressor and integrated Oxygen concentrator. It also includes filters and refrigerant dryer, chiller, ozone leak sensor and PLC control, with touch screen, data logging and remote access. Manufactured with high quality components, ready to connect electrically and work. Robust, durable and reliable equipment.
Manufacturing in 30-40 days
Industrial Ozone Generator
Technical specifications
Product Details
This powerful ozone generating machine is mainly used in water disinfection and purification treatments, and is frequently used in wastewater treatment plants (WWTP), public water purification (DWTP), agricultural irrigation lines, fish farms, aquariums, recovery of lakes and ponds, swimming pools, etc.
Product Details
| Ozone Generation system | 200 gO3/h ferrule with borosilicate dielectrics. Glycol cooled. |
| Oxygen concentrator | Set of two-column concentrators and compressors, 95% purity. |
| Compressed air unit | Pre-filter + Compressor + Dryer + Filter |
| Refrigeration | Chiller + 25 litres of Glycol ready to use |
| Control | For PLC V700, 7". Recipe manager, weekly programmer, alarm and maintenance manager. |
| Communication | Wired Remote ON, Status Relays (Initiated, Generating, Fault), Allows ModBus communication and Remote Access with Full Control with VPN router included. |
| Sensors | Ozone Amps, Compressed Air Pressure, Oxygen Pressure and Flow, Refrigeration Flow and Temperature, Door Opening, Ozone Leakage in a range of 0-10 ppm, and with a resolution of 0.01 ppm. |
| Technical Valves | Motorised outlet ozone valve, Manually controlled oxygen flowmeter, Motorised oxygen valve |
| Included in the packaging | Coolant Carafe + User's Manual |
| Ozone Production | 200 gO3/h |
| Ozone concentration |
Maximum = 200 g/Nm3 Optimum = 148 g/Nm3 |
| Air/Oxygen flow | 30 lpm |
| Power supply | 400V, 3P+N, 50Hz |
| Electric Power | 5.6 kW |
| Gas connection | OUT Thread 1/2 " Female + with tube fitting 10mm Ext. |
| Dimensions | 1200 x 1100 x 1850 mm (Width x Depth x Height) |
| Weight | 330 kg |
| Humidity | <85% |
| Room temperature | 5 - 35ºC |
| Working pressure | 0.7 bar |
| Source gas | Oxygen is generated by the equipment itself with its PSA unit. |
| Quality of the water that is refrigerated | Fill the chiller with the prepared Glycol included in the scope of delivery. |
| Others | Admits Venturi at the outlet |
| Made by | ZonoSistem |
| Made in | Spain |
| Sold from | 2016 |
| Last revision | 2023 |
| Certificates | CE, BIOCIDA PT2, PT4, PT5, PT11 |
| Warranty | 2 years extendable indefinitely, with maintenance contract |
| UFI number | G000-W09P-Y00M-TV8V |
Operation
This ozone generator equipment from the GRZO range includes a touch screen from which you can easily and intuitively program different treatments throughout the day. You can do it using a recipe planner. When the equipment receives an order, the refrigeration circuit is activated and the compressor starts taking air from the atmosphere. The air is filtered, dried and introduced into the PSA where the nitrogen is removed from the air. The oxygen gets concenterated to a purity of 95%. This flow of oxygen is conducted to the generation system where the corona discharge is applied and the oxygen is transformed into ozone. With the oxygen flow meter you can regulate the desired flow rate.
Included documentation
Safety manual.
User manual, installation and commissioning.
Maintenance manual.
Declaration of Conformity.
Certificate of guarantee
Compliance with biocidal regulations.
Our Quality Test results.
Technology
This GRZO ozone generator uses high frequency corona discharge technology with ceramic dielectric.
