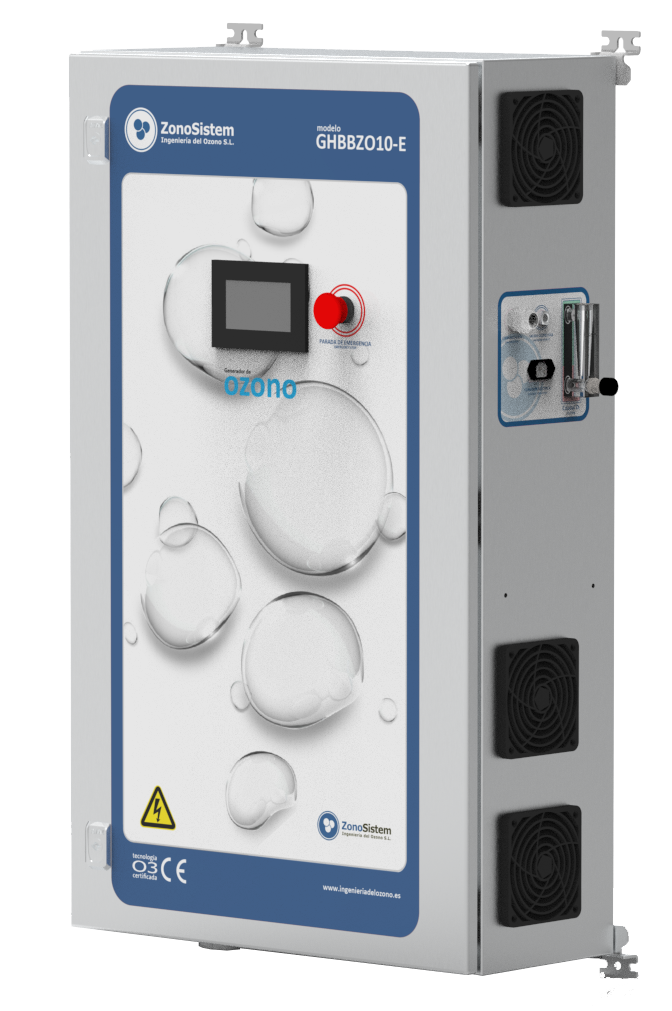

GHBBZO10-E Professional Ozone Generator. V2
Ozone generator for water treatment. Includes compressor, oxygen concentrator, pump, venturi, Redox and electronic control with touch screen 10 gO3/h, at 40 g/Nm3, 230V, 50Hz, 1.7kW
[Design] Ozone Generator, designed to maintain a constant amount of dissolved ozone in a water pipe.
[High performance] It achieves high doses of dissolved ozone, thanks to its accelerator pump, venturi and stainless steel reactor.
[Automatic start control] It starts automatically thanks to its analog flow sensor.
[Automatic power control] Allows you to select the level of redox you want and the equipment adjusts automatically.
[No replenishment of chemicals] Ozone is generated on-site. The equipment includes an oxygen concentrator.
[Simple Installation] You only have to attach the equipment to the pipe, and connect it to a light point.
[Maximum quality] Ozone generator made with top quality materials, resistant and durable.
Manufacturing in 10-15 days
Ozone generator
To inject ozone in a pressurized water pipe (in a homogeneous and automatic way).
What do you use it for?
This ozone generator is ideal for providing highly ozonated water continuously and homogeneously. Ozonized water is a powerful disinfectant, which is generated on site. Ozone leaves no residue. It is widely used in private and public swimming pools; fruit, vegetable and other industrial laundries; for washing and rinsing; small agricultural and garden irrigation, etc.
Product Details
| Room fittings | The room must be well ventilated. Free of grease and solvents. |
| Oxygen concentrator | Activated alumina two-column concentrator, 95% purity |
| Ozone Generation system | One 10 gO3/h module with borosilicate dielectric. Air-cooled. |
| Control | Electronic control with touch screen, Gas/Hydro Mode selector and automatic start on detection of water flow. |
| Compressed air unit | Pre-filter + compressor |
| Included in the packaging | Electrical connection cable + Fixing earmuffs + User's Manual |
| Technical Valves | Motorised valve for gas mode output and hydro mode output. Oxygen flow meter with manual regulation. |
| Sensors | Ozone Amps, Compressed air pressure, Oxygen pressure and flow rate, Water flow rate, Ozone leakage sensor, Redox meter in water and water temperature and pressure sensor. |
Optional |
|
| Accessories | Air handling unit, to increase the humidity range in the room up to 90%. |
| Hydraulic connection | Thread 2" Female |
| Electric Power | 1.7 kW |
| Air/Oxygen flow | 5 l/min |
| Packed size | 800 x 1200 x 500 mm (Width x Depth x Height) |
| Ozone Production | 10 gO3/h |
| Ozone concentration |
Maximum = 70 g/Nm3 Optimum = 40 g/Nm3 |
| Power supply | 230 V, 50 Hz |
| Gas connection | OUT Tube 8 mm outer diameter |
| Dimensions | 600 x 250 x 1000 mm (Width x Depth x Height) |
| Weight | Consult |
| Fluid temperature | 5 - 35ºC |
| Humidity | <65% (See accessories to increase range) |
| Working pressure | 0 - 0.4 Bar |
| Quality of the water to be treated | Osmosed, distilled, drinking and agricultural water |
| Room temperature | 5 - 35ºC |
| Maximum output pressure drop | 0 - 6 bar |
| Permissible inlet pressure | 0,2 - 6 bar |
| Minimum water flow rate | 10 l/min |
| Made in | Spain |
| Certificates | CE, BIOCIDA PT2, PT4, PT5, PT11 |
| UFI number | G000-W09P-Y00M-TV8V |
| Warranty | 2 years extendable indefinitely, with maintenance contract |
| Last revision | 2023 |
| Made by | ZonoSistem |
| Sold from | 2022 |
Functioning
This ozone generator can work in Hydro Mode (to treat water) or in Gas Mode (to treat water or air).
When it is working in Hydro Mode: the air compressor will start when the equipment detects any water flow, and will air from the atmosphere. The air will enter the PSA where nitrogen is removed and oxygen is concentrated to a purity of 95%. The resultant flow of oxygen will be conducted to the generation system, where the corona discharge is applied and the oxygen is transformed into ozone. Note that with the oxygen flow meter you can regulate the desired flow. Then accelerator pump will start and the ozone will be conducted to the venturi where it will be sucked in and mixed with the water. After that, the water with ozone will enter the homogenization and contact tank. Is in the tank where the Redox level of the water is measured. That will provide a constant water flow with a controlled, continuous and homogeneous amount of ozone. This will happen without generating any loss of pressure in the customer's pipe.
When the equipment is working in GAS Mode the ozone will be directed towards the ozone gas outlet, leaving the HYDRO part deactivated. With this gas mode you can carry out treatments in environments without people or you can also bubble ozone in a tank.
Performance curves
Documentation included
Safety manual.
User manual, installation and start-up.
Maintenance manual.
Declaration of conformity.
Certificate of guarantee.
Compliance with the biocidal regulation.
Results of the Quality Test in the factory.
Technology
This GHBBZO ozone generator uses high frequency corona discharge technology with borosilicate dielectric.
